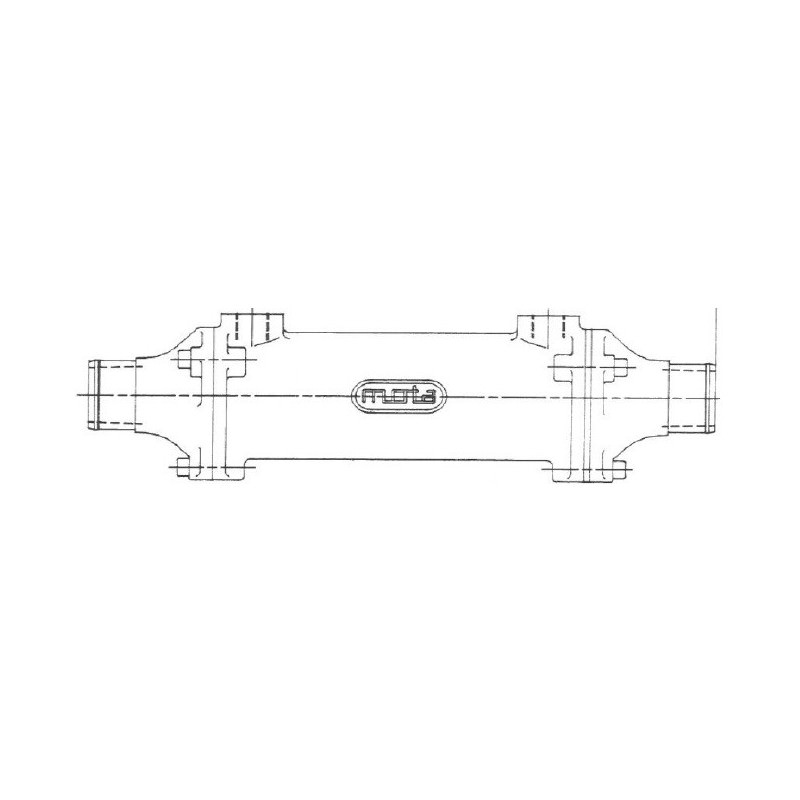

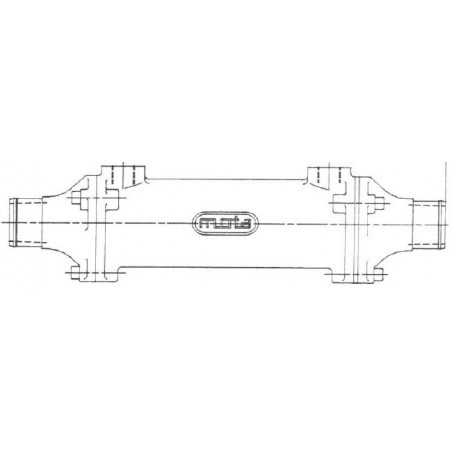

I083-255-1 - Marine Gearbox oil cooler (ex 18363)

Data sheet

Cold side anodes

No anode

Hot side connexion

1/2\" Rp

Cold side connexion

Ø60mm

Tubes diameter (mm)

6

Tubestack diameter (Ømm)

83

Hot side drains

No

Colde side drains

No

Range

I range

Tubestack length (mm)

255

Covers material (water cover)

Bronze

Header material

Brass

Tubes material

Cu

Housing material

Aluminium

Number of passes (colde side)

1

Number of tubes

109

Cold side flow range ( L/min )

75 - 100
100 - 150
150 - 175
175 - 250
250 or more

Type of cooler

Heat exchangers (water / oil / fuel)

Connexion type (cold side)

Hose

Liquid type (cold side)

Untreated water (sea type)

Sector of activity

Marine
Transmissions

Advantages

Anti corrosion
Easy maintenance
