E037-311-1 Copper-Nickel tubes version
Réf: E037-311-1/CN
E" range oil/water heat exchanger with Cupro-nickel tubes and brass caps for marine applications.
Suitable for low flow rates and small temperature difference, in particular for electrical applications.
Our new standard range of coolers has been designed to maintain all aspects that made MOTA success, while optimizing all aspects to improve cost:
- Reliability:
Best features gained from extensive experience (+40 years), such as floating bundle to prevent thermal stress, double o-ring sealing to ensure a complete safety toward fluid-mixing , double leak-test of coolers to guarantee a leak-free cooler
- Performance:
All MOTA know-how in performance design validated by OEM applications, integrated to optimize standard coolers.
- Modularity:
Only pay for what you need: select the size, features, material and arrangements in available conbinations to match your specific requirements.
- Maintenance:
Dismountable coolers for maintenance and available spare parts if necessary.
Data sheet
- Cold side anodes
- No anode
- Hot side connexion
- G 3/4
- Cold side connexion
- 19mm
- Tubes diameter (mm)
- 7
- Tubestack diameter (Ømm)
- 37
- Hot side drains
- No
- Colde side drains
- No
- Range
- E range
- Tubestack length (mm)
- 311
- Header material
- Brass
- Tubes material
- CuNi
- Housing material
- Anodized aluminium, black
- Number of passes (colde side)
- 1
- Number of tubes
- 7
- Cold side flow range ( L/min )
- 10 - 20
20 - 40 - Type of cooler
- Heat exchangers (water / oil / fuel)
- Connexion type (cold side)
- Hose
- Liquid type (cold side)
- Untreated water (sea type)
- Sector of activity
- Industrial application
Marine
Stationary engines
Transmissions
Vehicles - Advantages
- Anti corrosion
Easy maintenance
Sector of activity
Advantages

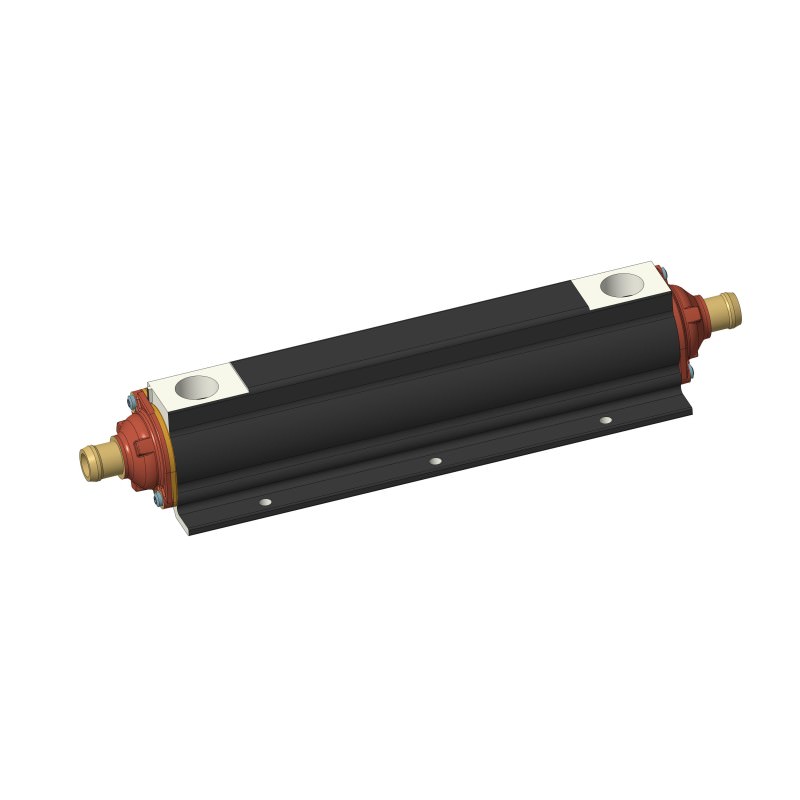

"E" range Oil cooler with Ø37mm diametre, 311 mm length, cold side connection for Ø32mm hose (1 pass).
Marine version, with copper-nickel tubes, bronze covers.
