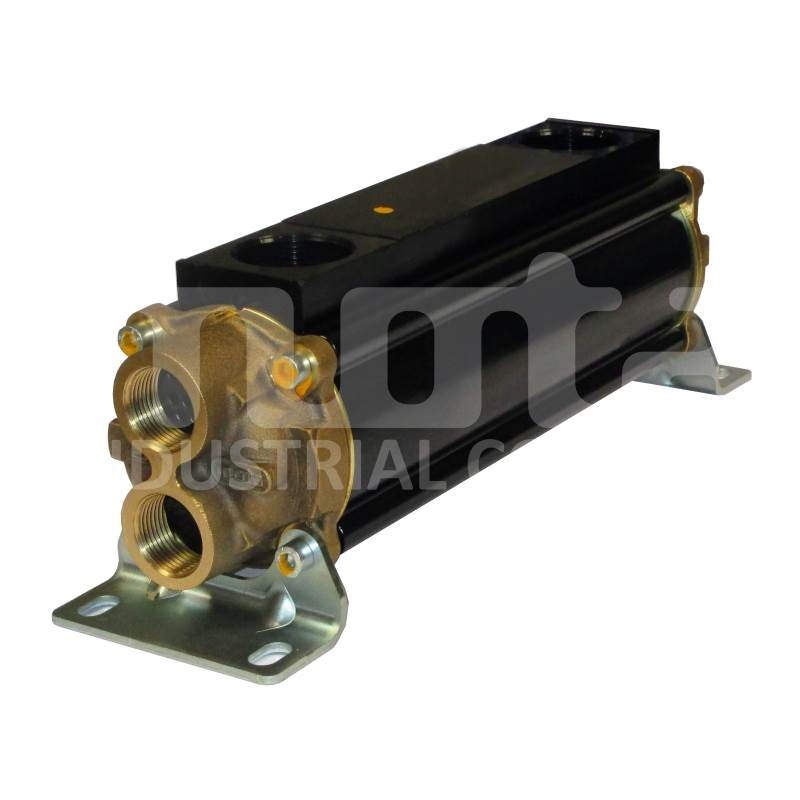

E083-283-2/CN-BR-D-AA Hydraulic oil cooler, marine version with drain and anodes

Réf: E083-283-2/CN-BR-D-AA

E083-283-2/CN-BR-D-AA Echangeur d'huile hydraulique, version marine avec drain et anodes
search
  • E083-283-2/CN-BR-D-AA Echangeur d'huile hydraulique, version marine avec drain et anodes

Our new standard range of oil coolers has been designed to maintain all aspects that made MOTA success, while optimizing all aspects to improve cost::

  • Reliability:

Best features gained from extensive experience (+40 years), such as floating bundle to prevent thermal stress, double o-ring sealing to ensure a complete safety toward fluid-mixing , double leak-test of coolers to guarantee a leak-free cooler

  • Performance:

All MOTA know-how in performance design validated by OEM applications, integrated to optimize standard coolerss.

  • Modularity:

Only pay for what you need: select the size, features, material and arrangements in available conbinations to match your specific requirements

  • Maintenance:

Dismountable coolers for maintenance and available spare parts if necessary

Data sheet

Cold side anodes
With anode
Hot side connexion
1\" 1/2 Rp
Cold side connexion
1\" Rp
Tubes diameter (mm)
6
Tubestack diameter (Ømm)
83
Hot side drains
Yes
Colde side drains
No
Range
E range
Tubestack length (mm)
283
Covers material (water cover)
Bronze
Header material
Brass
Tubes material
CuNi
Housing material
Anodized aluminium, black
Number of passes (colde side)
2
Number of tubes
86
Cold side flow range ( L/min )
20 - 30
20 - 40
45 - 60
60 - 75
75 - 100
100 - 150
Type of cooler
Heat exchangers (water / oil / fuel)
Connexion type (cold side)
Threading
Liquid type (cold side)
Untreated water (sea type)
Sector of activity
Industrial application
Marine
Stationary engines
Transmissions
Vehicles
Advantages
Anti corrosion
Easy maintenance
