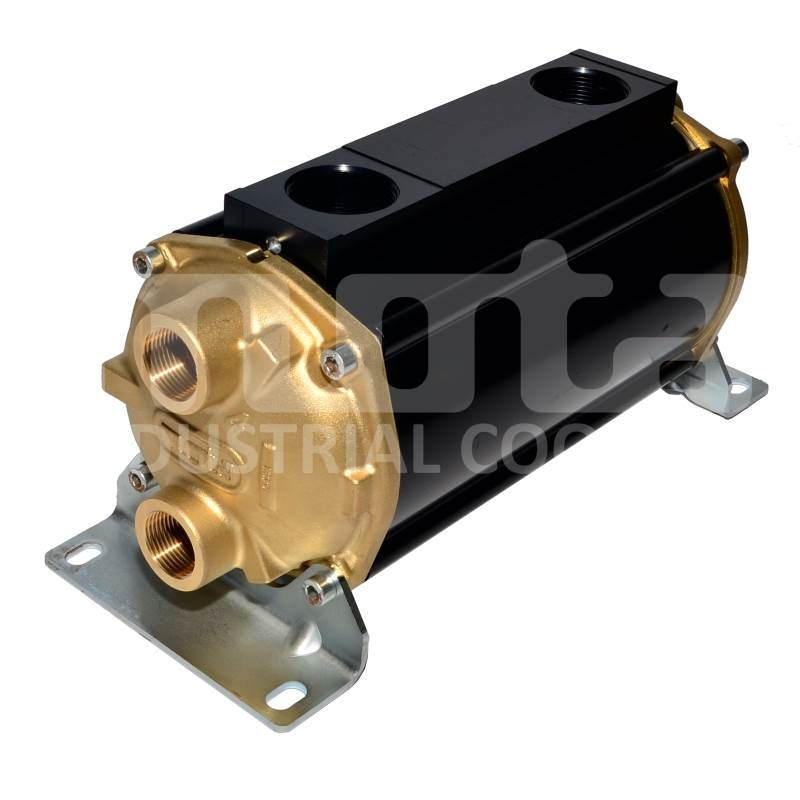

E135-283-4, Hydraulic oil cooler, standard version

Réf: E135-283-4

E135-283-4 Echangeur d'huile hydraulique, version standard
search
  • E135-283-4 Echangeur d'huile hydraulique, version standard

Our new standard range of oil coolers has been designed to maintain all aspects that made MOTA success, while optimizing all aspects to improve cost::

  • Reliability:

Best features gained from extensive experience (+40 years), such as floating bundle to prevent thermal stress, double o-ring sealing to ensure a complete safety toward fluid-mixing , double leak-test of coolers to guarantee a leak-free cooler

  • Performance:

All MOTA know-how in performance design validated by OEM applications, integrated to optimize standard coolerss.

  • Modularity:

Only pay for what you need: select the size, features, material and arrangements in available conbinations to match your specific requirements

  • Maintenance:

Dismountable coolers for maintenance and available spare parts if necessary

Data sheet

Cold side anodes
No anode
Hot side connexion
1\" 1/2 Rp
Cold side connexion
1\" Rp
Tubes diameter (mm)
6
Tubestack diameter (Ømm)
135
Hot side drains
No
Colde side drains
No
Range
E range
Tubestack length (mm)
283
Covers material (water cover)
Brass
Header material
Brass
Tubes material
Cu
Housing material
Anodized aluminium, black
Number of passes (colde side)
4
Number of tubes
258
Cold side flow range ( L/min )
45 - 60
60 - 75
75 - 100
100 - 150
150 - 175
175 - 250
Type of cooler
Heat exchangers (water / oil / fuel)
Connexion type (cold side)
Threading
Liquid type (cold side)
Treated water (glycol type)
Sector of activity
Industrial application
Stationary engines
Transmissions
Vehicles
Advantages
Easy maintenance
