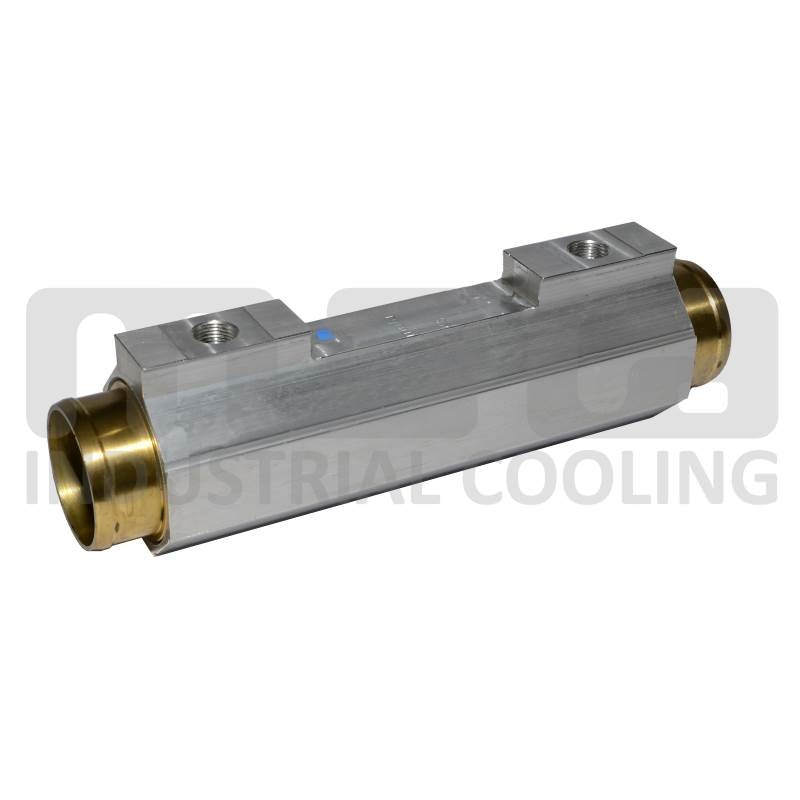

G058-175-1/NC52 Oil cooler, NC52 version
Réf: G058-175-1/NC52
This heat exchanger has been initially designed to cool marine gearboxes, meaning it is highly resistant to pressure and completely compatible with sea water. Usually installed on inverters mounted with engines up to 260hp.
MOTA design ensures that this cooler will not experience thermal expansion stress providing extended longevity.
Its characteristic and material choices also allow it to be an excellent choice for all other types of applications:
- engine oil cooling
- diesel fuel cooling
- hydraulic oil cooling or heating
Installation is very quick and easy provided by simple hose connections on the cold side and standard threaded connections on the hot side.
All heat exchangers provided by MOTA deliver our highest standard heat rejection: high density tubestack allows a very compact heat exchanger with high performance.
Data sheet
- Cold side anodes
- No anode
- Hot side connexion
- 3/8\" Rp
- Cold side connexion
- Ø52mm
- Tubes diameter (mm)
- 6
- Tubestack diameter (Ømm)
- 58
- Range
- G range
- Tubestack length (mm)
- 175
- Covers material (water cover)
- Brass
- Tubes material
- Cu
- Housing material
- Extruded aluminium
- Number of passes (colde side)
- 1
- Number of tubes
- 49
- Cold side flow range ( L/min )
- 45 - 60
60 - 75
75 - 100
100 - 150 - Type of cooler
- Heat exchangers (water / oil / fuel)
- Connexion type (cold side)
- Hose
- Liquid type (cold side)
- Untreated water (sea type)
- Sector of activity
- Industrial application
Marine
Stationary engines
Transmissions
Vehicles - Advantages
- Anti corrosion
Sector of activity
Advantages
"G" range oil cooler with Ø58mm diametre, 190mm length, cold side connection for Ø52mm hose.
Extruded aluminium housing, Copper-Nickel tubes.
