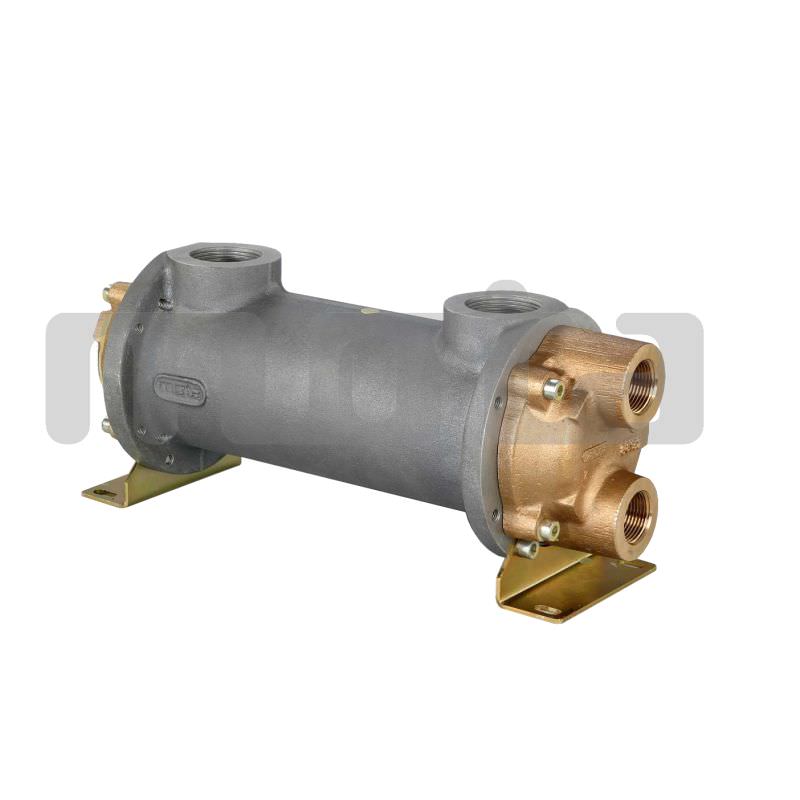

A120-324-4/CN-BR-D-H Oil / Water cooler (ex 18530)
Réf: A120-324-4/CN-BR-D-H
search
- Cold side anodes
- No anode
- Hot side connexion
- 1\" 1/2 Rp
- Cold side connexion
- 1\" Rp
- Tubes diameter (mm)
- 6
- Tubestack diameter (Ømm)
- 120
- Hot side drains
- No
- Colde side drains
- No
- Range
- A range
- Tubestack length (mm)
- 314
- Covers material (water cover)
- Bronze
- Header material
- Brass
- Tubes material
- CuNi
- Housing material
- Anodized aluminium
- Number of passes (colde side)
- 4
- Number of tubes
- 190
- Cold side flow range ( L/min )
- 20 - 40
45 - 60
60 - 75
75 - 100
100 - 150
150 - 175
- Type of cooler
- Heat exchangers (water / oil / fuel)
- Connexion type (cold side)
- Threading
- Liquid type (cold side)
- Untreated water (sea type)
- Sector of activity
- Industrial application
Marine
Stationary engines
Transmissions
Vehicles
- Advantages
- Anti corrosion
Easy maintenance
High flow
