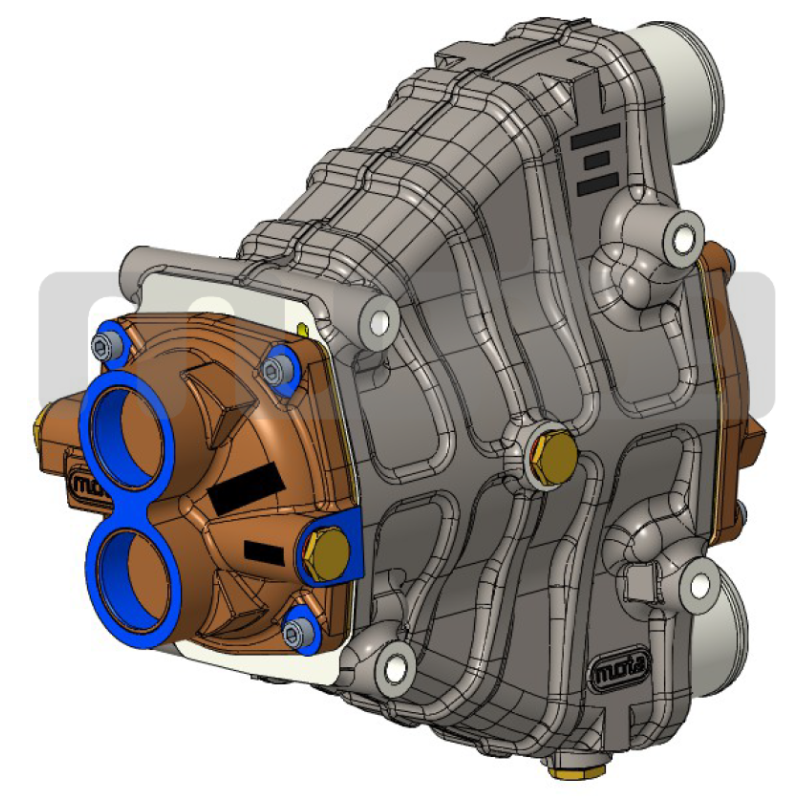

MOTA charge air cooler Ø135mm - Rp 1''1/2 connection

Réf: CAC135-244-2/CN-BR-RP

MOTA charge air cooler Ø135mm - Rp 1''1/2 connection
search
  • MOTA charge air cooler Ø135mm - Rp 1''1/2 connection
  • MOTA charge air cooler Ø135mm - Rp 1''1/2 connection

For users who wish to have a tapped connection on the cold side. We offer this version of the of the CAC135-244-2 intercooler with an Inlet/Outlet cap (cover) with an Rp 1" 1/2 threaded connection.

This new charge air cooler 'Intercooler) has been designed to be reliable, performant and easy to install on any type od application.

• marine engine

•Industrial engine (gen-sets, cogeneration, fire pumps,...)

• Test bench

• compressor

• other application

It is dismontable to allow for easy cleaning and maintenance. The only parts to be changed are the o-rings!

Data sheet

Hot side connexion
Ø63.5mm
Cold side connexion
1\" 1/2 Rp
Tubestack diameter (Ømm)
135
Hot side drains
Yes
Colde side drains
Yes
Range
Charge air cooler (interncooler)
Tubestack length (mm)
244
Covers material (water cover)
Bronze
Tubes material
CuNi
Housing material
Aluminium
Number of passes (colde side)
2
Cold side flow range ( L/min )
60 - 75
75 - 100
100 - 150
150 - 175
175 - 250
250 or more
Type of cooler
Charge air cooler (interncooler)
Sector of activity
Industrial application
Marine
Stationary engines
Transmissions
Vehicles
Advantages
Anti corrosion
Easy maintenance
